Spiral elevators with heating, cooling and other options

Water cooled spiral elevator

Spiral elevator fitted with water cooled/ heated flights, hot/cold water is pumped through the water jacketed flights to create a constant cooling/heating effect

Our system uses independent sections which allows more flexibility and control over the temperature but also allows for the spiral to maintain it's functionality in the  event of a jacket blockage/breakage.

Spiral elevator fitted with a hot/cold blown air system. Hot/cold air is blown via a manifold and individually placed inlet spigots, hot air is usually supplied from a gas or electric burner.

Spiral elevator - cooling
Spiral elevator using cold air for cooling
Spiral elevator - cooling

Similair systems using external spray bars for cooling with water

Spiral elevator with water cooling
Spiral elevator - jacket flights for water cooling

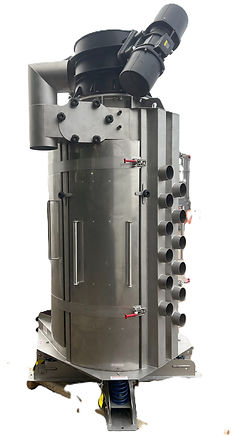

Spiral elevator - drying

Adjustable nozzles fitted to the central tube blowing air onto product.

Spiral elevator - cooling option

On the left: A fully enclosed spiral for salt drying, hot air at around 250 degrees  is supplied via a gas burner, using insulated doors and a heat exchanger for efficiency.

Spiral elevator for washing

 An enclosed spiral using integrated spray bars for washing/rinsing

All our spirals are manufactured to customer specific specifications and can be designed to suit your requirements
