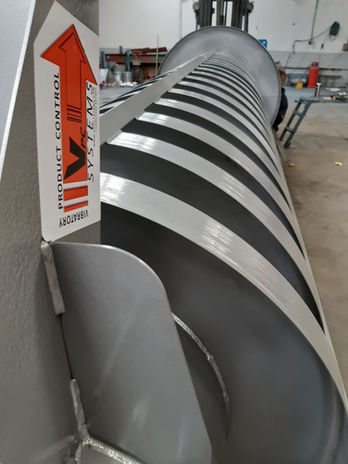

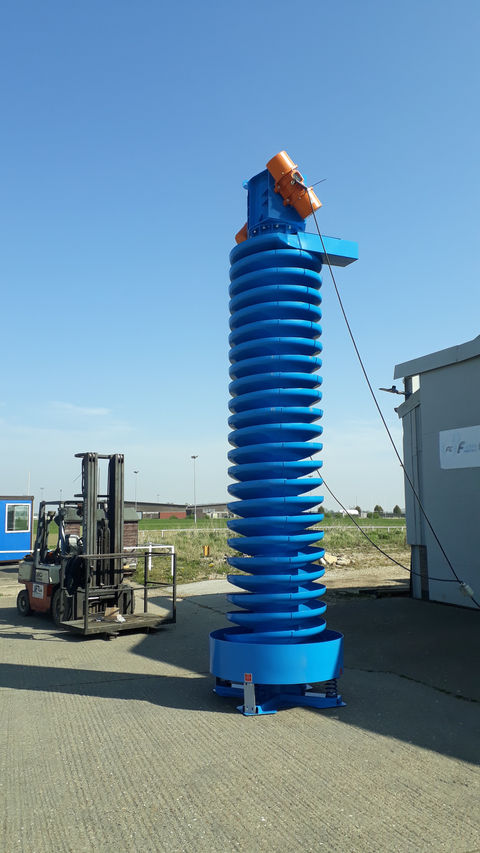

SPIRAL ELEVATORS

Vibratory Spiral Elevators are vertically aligned oscillating conveyors, which are increasingly being used in production lines and processes to elevate or softly de-elevate material/product.


 Its use is becoming one of the standard solutions for bulk material handling in numerous industrial sectors where space is restricted .

Due to a small horizontal footprint and large travel distance, Vibratory Spiral Elevators are often used to either cool or in some cases heat material/product. To further increase it's cooling or heating ability holes can be added to the central tube and cold (or hot, depending on process) air can be passed through to assist the material/product to reach desired temperatures.

Due to their design , spiral elevators allow for easy access for cleaning and sterilisation purposes.



Spirals can be totally enclosed i.e. when handling very fine powders.

Gentle handling characteristics make them suitable for most products/materials.

VPC- Systems  Spiral elevators are very low maintenance, very reliable and built to last offering trouble free production for years to come.

Due to the diversity of  products/materials and their properties, the design is almost always project-related, whereby standardised gradations of the helical diameters are taken into account to implement functional features to suit the application.

Twin track spirals are available.

Spirals can be made in stainless steel or mild steel.

Vibratory spiral elevator


For controlled feeding and conveying of your product or ingredients.

Strong and reliable

Bespoke design

Can be manufactured in stainless steel for food handling.

Call now to discuss your requirements

MORE INFO

For grading/sizing of your products & ingredients

Can  accommodate multiple screening sizes on one machine.

Strong and reliable.

COMPACTION TABLES

TUBULAR FEEDERS

ETC...


MOTORS       SPRINGS

AND OTHER SPARES
